Mga pagtutukoy
Bilis ng Cutting: 0-30000mm / min
Suportadong Graphic Format: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, Iba pa
Application: Laser Cutting
Kalagayan: Bago
Pagputol ng Kapal: 6mm
CNC o Hindi: Oo
Paglamig Mode: Air Cooling
Control Software:FSCUT2000,Chutian special cutting software
Lugar ng Pinagmulan: Anhui, China (Mainland)
Certification: CCC, ISO
Ang Serbisyo ng Pagkatapos-benta na Ibinibigay: Ang mga inhinyero ay magagamit sa makinarya sa ibang bansa
Application Fields

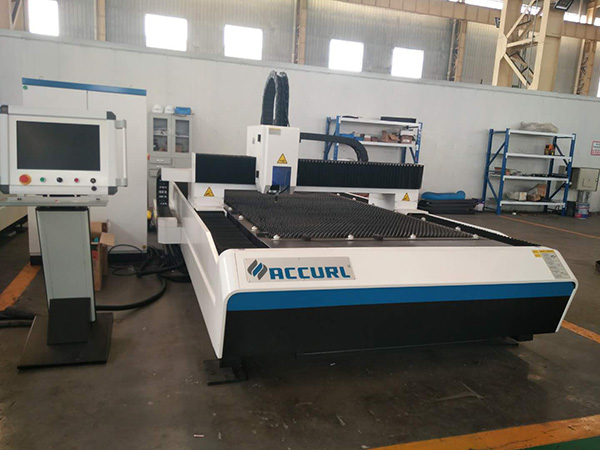

machine adopts the most sophisticated IPG/SPI laser, combining Gantry CNC machine designed by our company and high strength welding body, after high temperature annealing and precision machining by large CNC milling machine. It has good rigidity and stability with precision ball screws, linear guide drive run. It is mainly for cutting sheet metal below 8mm in high speed and high precision. Fiber laser has a series of advantages, such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, carton steel precision cutting. It is widely used in metal products, hardware, precision machinery, auto parts, glasses, jewelry, nameplate, electronics, toys, advertising and other industries.
Description for machine:
1. Product scheme and composition
Fiber laser cutting machine is composed of fiber laser, cutting head, control system, cooling system, the machine unit, exhaust degusting system etc..
2. Product performance
Widely used in cutting sheet metal, like carbon steel, stainless steel, alloy steel and other metal materials. Also we can process various shapes and sizes of parts; cutting all kinds of text, logo and pattern.
Cutting Range: Board 3000mm*1500mm,
Thickness of cutting carbon steel: 0.2mm—6mm
Cutting Width: 0.08—0.15mm
The machine X, Y, Z axis travel 3000mm*1500mm*100mm
Positioning accuracy: ±0.05mm/1000mm
Repeat positioning accuracy: ±0.03mm/1000mm
Standard machine idle speed: 30m/min
The maximum idle speed: 50m/min
1mm thick board O2 Max cutting speed:
( IPG-1000 Laser) 10m/min
(SPI-CW-1500 Laser) 15m/min
Max Cutting Depth:
Carbon Steel(O2) 7mm
Stainless steel(N2) 3.5~4mm
Stainless steel(O2) 6mm
3. The list of product system:
Laser
FIber lasers: 1000W (SPI optional)
Panlabas na optical path at pagputol ng ulo
Laser cutting head High, precision automatic cutting head
Capacitive sensor BCS100, Automatic follow
Focusing lens 25.4 F=100
The host machine
Machine platform and accessories 3000mm*1500mm cutting head
The X axis ball screw 4010 high-speed screw;The 35 mute rail; TAIWAN HIWIN
The Y axis of rolling guide 5050 high-speed screw;The 45 mute rail; TAIWAN HIWIN
Planetary reducer VRB140, Japan SHIMPO
Bearing Japan, NSK
Dust cover Qingdao, HEMA
Drag chain PKK, China
